What’s the Best Way to Store CNC Cutting Tools?

The best way to store CNC cutting tools is in a clean, dry, and organized system that protects cutting edges from damage, prevents corrosion, and ensures quick, error-free identification. This involves using dedicated storage like cabinets or racks, protective sleeves, and environmental control, transforming storage from simple shelving into a strategic component of tool management and shop efficiency.

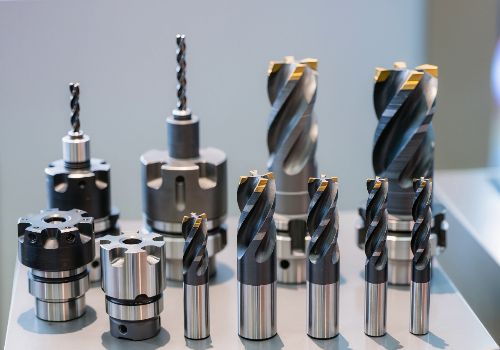

Introduction: Your Tools Are an Investment—Store Them Like One

For any machine shop, CNC cutting tools represent a significant capital investment and are the literal cutting edge of your productivity. Improperly throwing end mills, inserts, and drills into a messy drawer might seem convenient, but it leads to a cascade of costly problems: chipped cutting edges, accelerated corrosion, frustrating search times, and premature tool failure.

Proper storage isn’t just about tidiness; it’s a critical practice in preventive maintenance and quality control. It preserves the precision geometry you paid for, ensures repeatable performance, and protects your bottom line. This guide details the how and why of professional CNC tool storage.

Core Principles of Effective Tool Storage

Before selecting bins or cabinets, understand the three universal rules that apply to all cutting tools:

1. Protect the Cutting Edge: The sharp, precise geometry of a tool is its most critical asset. Any contact with other metal objects can cause microscopic chips or dulling that degrades performance and surface finish.

2. Prevent Corrosion: Most tooling is made from high-speed steel (HSS) or carbide, which can corrode when exposed to moisture and certain airborne contaminants. This “tool rust” weakens the structure and damages edges.

3. Enable Organization & Identification: A tool is useless if you can’t find it quickly or if you grab the wrong one. Storage must support intuitive organization by type, size, and application.

The Storage System: Choosing the Right Foundation

The right storage solution depends on your shop’s size, tool inventory, and budget. Here are the most effective options:

Table: Comparison of CNC Tool Storage Systems

Recommendation: A combination is often best. Use a modular cabinet for the majority of your inventory, with foam panels for your most critical, frequently used tools, and wall racks for bulky accessories.

Step-by-Step: Organizing Your Tools for Maximum Efficiency

Once you have the right system, follow this process to organize it:

1. Inventory & Sort: Gather all tools. Discard any damaged beyond repair. Sort by category (end mills, drills, inserts, etc.), then by sub-categories (ball nose, flat end, carbide, HSS).

2. Designate Zones: Assign specific drawers or cabinet sections to each major category. Keep related items together (e.g., drills and drill chucks, end mills and collets).

3. Implement Dividers & Inserts: Use adjustable plastic or foam dividers within drawers to create individual slots for each tool. Tools should never touch each other.

4. Label Everything: Use a label maker. Label the front of each drawer (“¼” – ½” Carbide End Mills”) and consider labeling individual slots for precise sizes. This is crucial for anyone besides the primary user.

5. Create a “Shadow Board” for Active Tools: For tools currently in use on the shop floor or in a CNC machine’s tool carousel, a foam-backed shadow board at the machine station ensures they are always returned to the correct spot, preventing loss and mix-ups.

Critical Storage Accessories: The Unsung Heroes

These low-cost items dramatically increase protection:

• Protective Sleeves & Edge Guards: Simple plastic or foam sleeves that slide over the flutes of end mills and drills. They are the single most effective way to prevent edge-to-edge contact.

• VCI (Vapor Corrosion Inhibitor) Paper & Chips: Place these in drawers and cabinets. They emit a gentle vapor that forms a protective molecular layer on metal surfaces, preventing rust without being messy or oily.

• Desiccant Packs: Small silica gel packs placed in enclosed storage spaces absorb ambient moisture, creating a drier micro-climate.

• Tool Trays & Tote Pans: For transporting multiple tools from storage to a machine safely. The tray prevents tools from rolling and banging together.

Environmental & Handling Best Practices

• Control Humidity: If possible, maintain shop humidity below 50% to inhibit corrosion. A dehumidifier in the storage area can be a worthwhile investment.

• Keep It Clean: Ensure tools are clean and dry before storage. Residual coolant, especially water-soluble types, will cause rapid corrosion. Wipe tools with a light, rust-preventative oil like WD-40 Specialist® Corrosion Inhibitor if they will be stored long-term.

• Handle with Care: Always handle tools by their shank, never the cutting edges. When placing a tool in its slot, lower it in—don’t drop it.

• Manage Tool Holders Separately: Store tool holders (collet chucks, end mill holders) in their own organized racks, clean and free of debris to maintain spindle accuracy.

A Note on Specific Tool Types

• Carbide Inserts: Keep them in their original, labeled plastic boxes. These boxes are designed for protection and organization. Never dump inserts loose into a bin.

• Boring Bars & Precision Tools: These are highly susceptible to deflection and damage. Store them horizontally in individual slots with full-length support.

• Taps: Extremely fragile. Use dedicated tap stands or blocks that support the tap along its length and protect the threads.

Conclusion: Storage as a Strategic Advantage

Implementing a disciplined tool storage system is a hallmark of a professional, efficient, and profitable machine shop. The benefits are tangible:

• Reduced Tooling Costs: Longer tool life through edge protection and corrosion prevention.

• Increased Productivity: No more wasted time searching for tools or setting up with the wrong size.

• Improved Job Quality: Consistent tool performance leads to consistent part quality.

• Enhanced Safety: Organized storage reduces handling accidents and prevents damaged, unpredictable tools from being used.

Start your transformation today. Audit your current tool storage, invest in a basic cabinet and protective sleeves, and commit to the habit of “a place for everything, and everything in its place.” Your tools—and your profit margin—will thank you.
